[Watson_250]

building up my 98 cummins 12 valve 5spd quad cab shortbox slt

front end ----> 79 high pinion dana 60 35 spline chromoly shafts 4:10's outlaw customs high steer custom steering box half ford half dodge u-joint custom drive shaft 6.5" F-350 lift springs 9 inch drop front crossmember and shackles (homebuilt)

lowerd trans crossmember and got indexing ring

rear ---> 14 bolt FF 4:10's detroit locker half dodge half chev u-joint custom driveshaft dodge 5" lift springs 4" blocks 6" drop brackets and shackles (homebuiilt)

still tons too do .... heres a coople pics

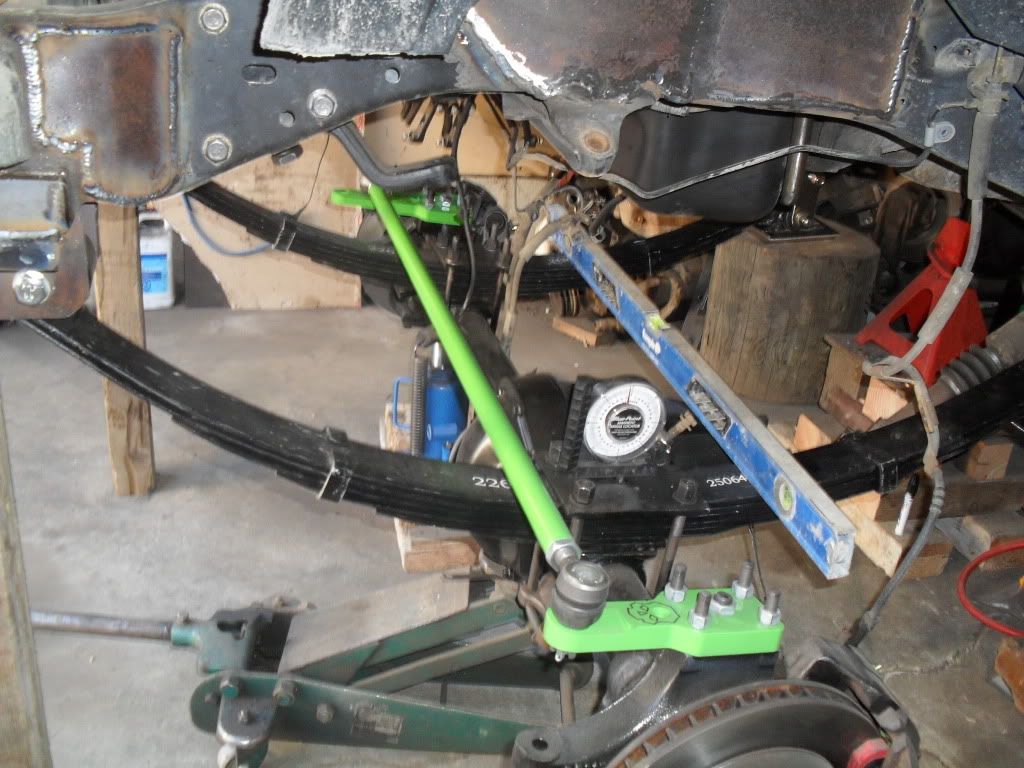

setting up front end

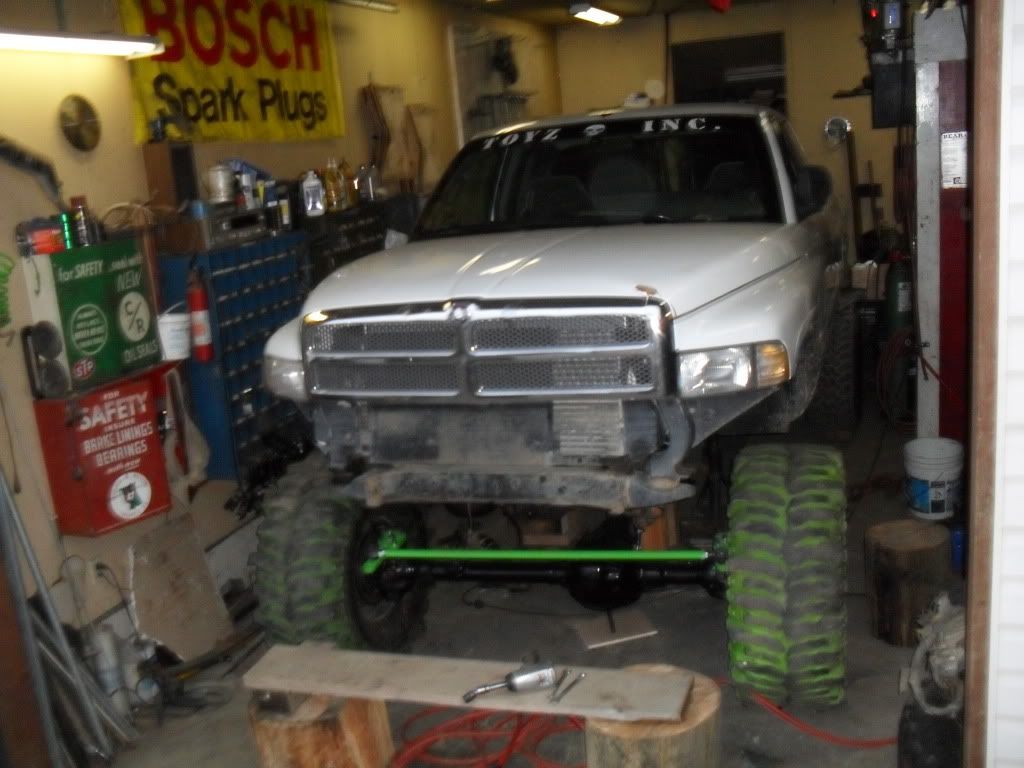

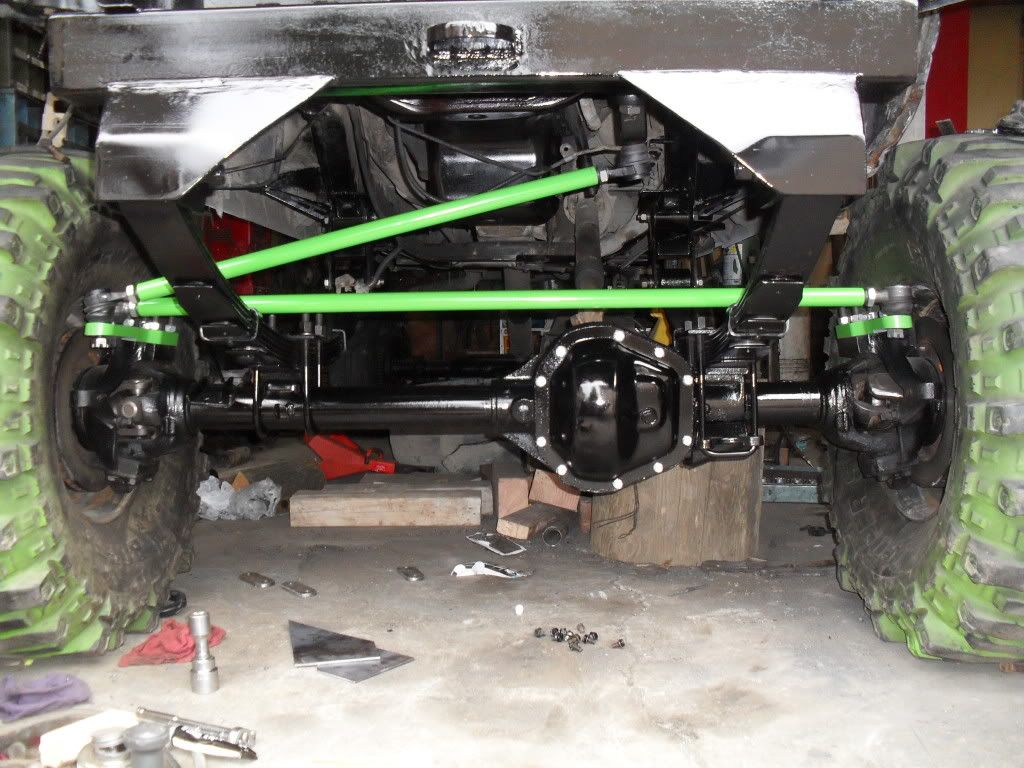

front done ...

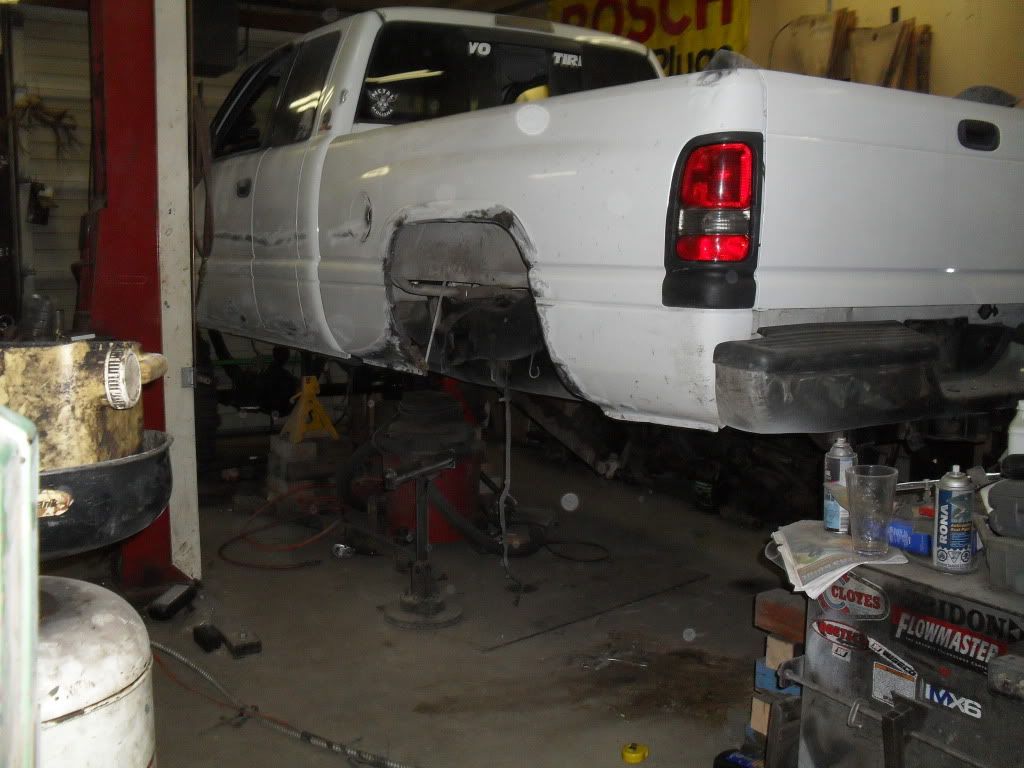

starting rear



[Ranger Guy418]

****in Rights Doood... Thats cooool



[LORDDiESEL]

one of my favorite trucks. Thats a bad ass build!



[steve604]

good looking truck

did you paint the tires green on purpose?



[LORDDiESEL]

BTW, how many degrees on that front diff?



[Tmax]

looks killer. maybe try to brace the front diff though. that cummins motor is not light. cool build.



[TroyM]

looks good

i think your the guy that pulled my buddys truck up onto its wheels last may long.. red superduty... i was in the white ranger



[Watson_250]

haha ya the tires came green when i got them dunno what happened just mock ups.... the front diff is at 2 degrees and yes i enjoyed flipping back over ur buddys rolled superduty
