[snowracer]

well i have a buddy that has an 97 safari van that is awd, now he has been after me for a few years now to lift it for him. now that im on the ei race team i have some free time so we got started on it, and i just had to share it with you all becasue it is just too sweet not toopcorn

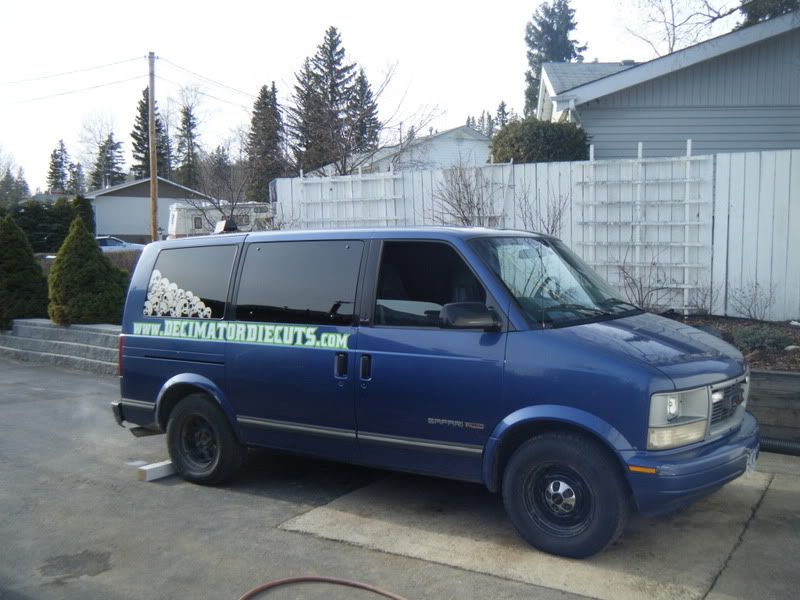

before pic with 215/75r15 tires

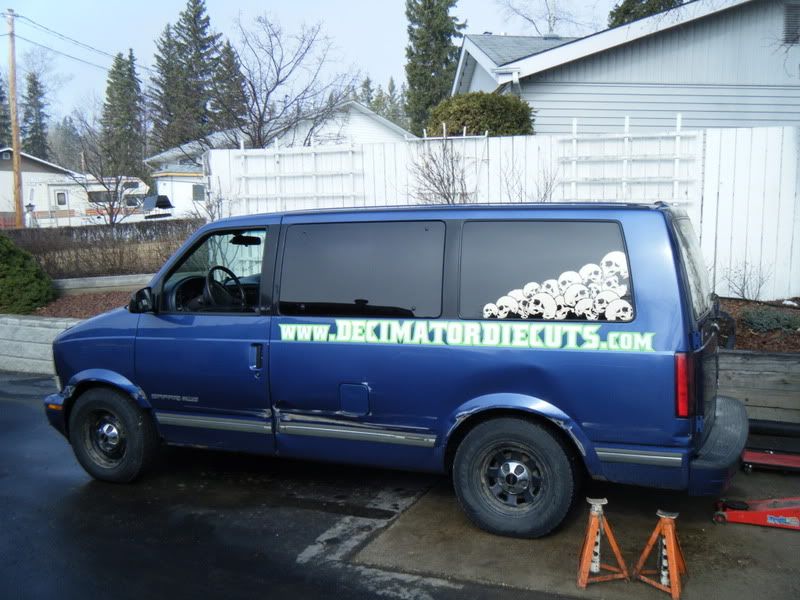

then on the first weekend we did a rear 1inch block and turned up the t-bars

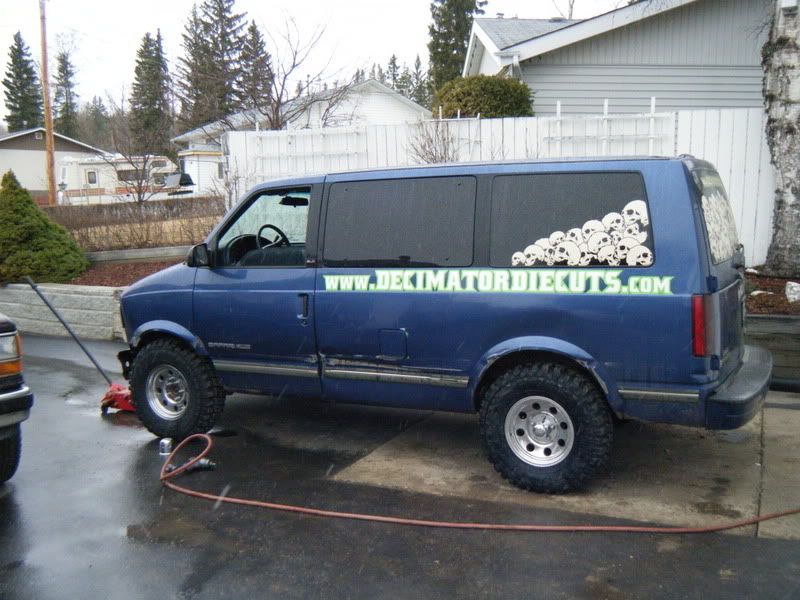

now from what everone online says you can only run 235/75r15 or 29s with a 3inch lift but we fit 31s

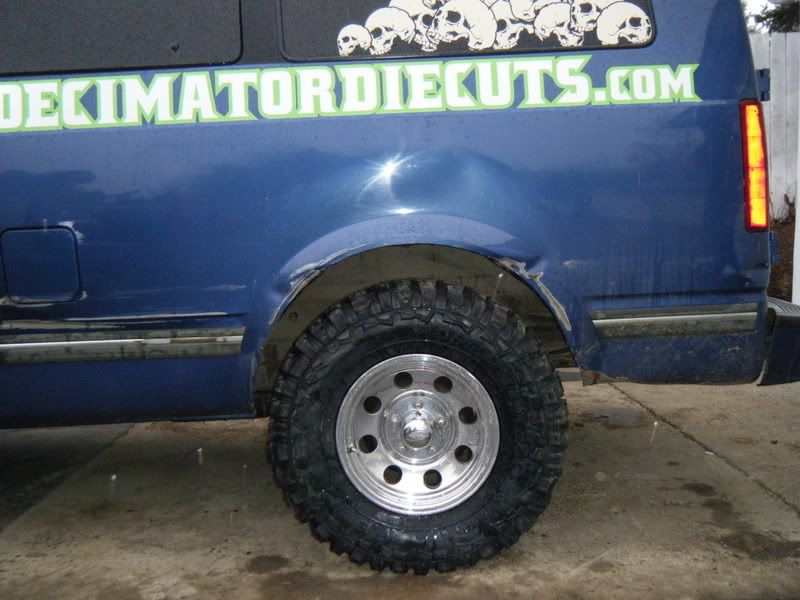

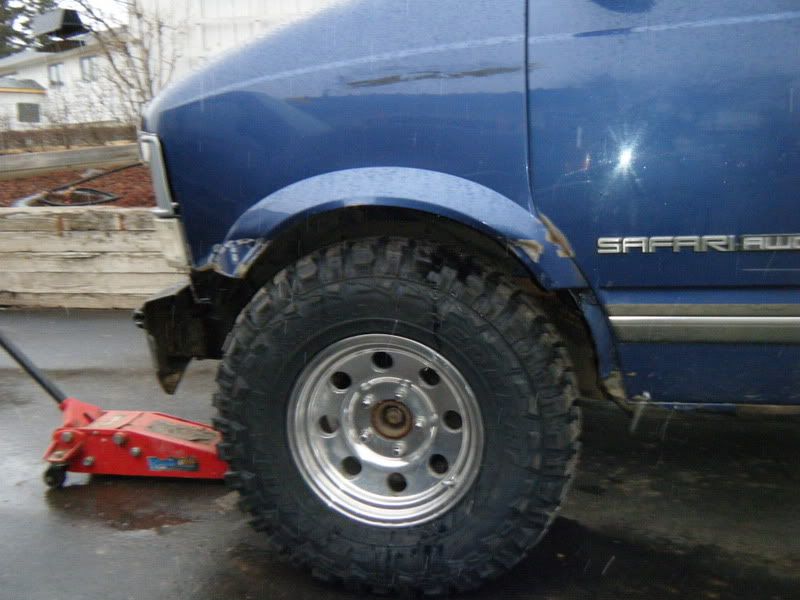

to do this we did a 2inch body lift for the front and a add a leaf in the back then pulled the front bumped cover off and trimmed and beat in the fenders a little. buddy has been driving it for a little bit and says it only rubs the tires on really big bumps so i will see if i can beat the fenders in a little more

more to come, like some front bumper work with a light bar and maybe a roof rack :*******



[crazycanadian]

looks like fun... Is the T-case in that one a selectable one? I am pretty sure it wont be in which case it'll just have a viscous clutch in it for the system to work.. You will want to swap this out to a manual shift t-case asap... you'll burn the viscous clutch out in no time.. they aren't cheap..



[The11thNickel]

Now it needs dark grey paint and an orange stripe. . . XD



[snowracer]

ya it has the full time awd tcase in, it will stay that way for now. he doesnt really plan on wheeling it, its more for getting to the bike trails and he works out in the oil rigs so the roads are bad. the next thing on the list is a front skid plate to cover the oil pan then like a said light bar, he really want to paint it flat black and more skulls.



[snowracer]

UP DATE TIME :welder

started on the front skid plate today, still need to make one more mount for the center then cut holes for the oil filter and drain plug but ran out of time today

i welded it all the way around on the outside and stitch welded in on the inside in a few spots
